CE Back Pressure Valve The CE Back Pressure Valve will support a column of fluid in the CT. When the pressure inside the CT exceeds the well hydrostatic pressure by a pre-determined amount, the Back Pressure Valve will open and the fluid can be circulated through the BHA. The CE Back Pressure Valve features a …
CE Coiled Tubing Jar Test beam The CE Test beam is designed to enable the Coiled Tubing Jars to be function tested. It can also be used to assist with the function of testing Bi-Directional Impact Hammers and other push/pull testing capabilities. The CE Test Beam consists of a steel framework on which sits a …
CE Active Pressure Relief Valve Use the CE Active Pressure Relief Valve to prevent BHA over-pressure and protect tools. The CE Active Pressure Relief Valve opening pressure is set at the surface so that when the BHA pressure increases, the flow ports to the annulus get open. When the flow rate is increased, the gradual …
CE 3-Way Circulation Valve The CE 3-Way Circulation Valve is specifically designed for bypassing any CT Manipulation Tools during a high-rate circulation situation. The CE 3-Way Circulation The valve works following this circulation sequence: Initially all flow is passed through the Valve to the tool string below only The circulating pressure is then increased to …
CE CV allows the circulation The CE CV allows the circulation of the fluid through the CT tool when working under normal operating conditions. By dropping a ball, this circulation path is closed off and the fluid is diverted from the CT tool string to the well via flow port devices. This valve is useful …
CE NOCV allows the circulation of fluid The CE NOCV allows the circulation of fluid coming from the CT tool string into the well, under normal operating conditions. By dropping a ball, this circulation path is closed off and the fluid is diverted through the tool string body. This valve is highly useful when an …

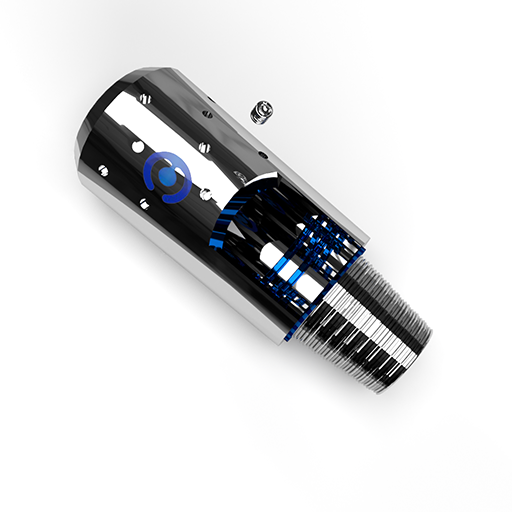

The CE Dimple Connector tool forms a full bore sealed joint between the outside of the coiled tubing and the CT tool string section. The joint O.D. of the tool matches the tool string. A pattern of set screws located in the body of the connector is locked into pre-formed dimples made on the outside …
CE Jetting Nozzles are available in a number of configurations including Single Port Flow Through, Multi Port Down, Multi Port Side and Multi Port Back Jetting to suit all tool string thread connections and O.D.’s.
CE TFCV integral type tool The CE TFCV integral type tool acts as a dual barrier within the tool string against well fluid back flow in the coiled tubing. The flappers are mounted integrally into the body of the tool to maximise the flow area whilst providing a simple, efficient and cost effective method of …
The CE TFCV lockout sleeve allows the check valves to be run in the open position, thereby enabling the reverse circulation of the fluid from the well through the CT. When required, a drop ball can be used to shear out the lockout sleeve into an integral catcher sub located below the tool. The TFCV …
